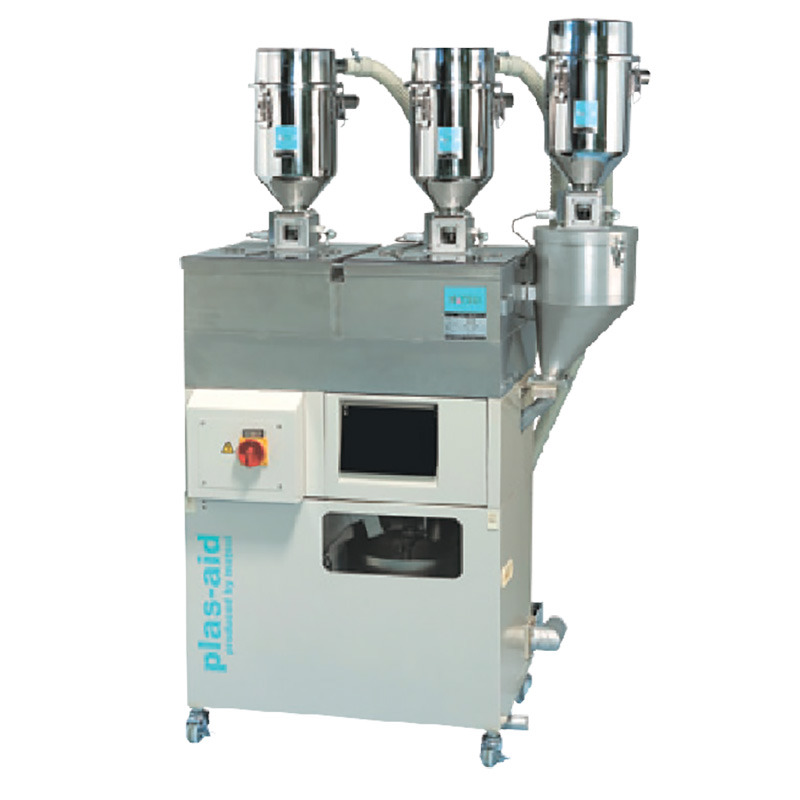

Gravimetric Type Blender
“JCW2 is a compact mass measurement-type blender with high measurement precision.
As all materials can be discharged downward, operation and maintenance can be carried out at the front and hence, improves working performance.”
1. Simple Operation
User-friendly operation style
2. Automatic Operation
This automatically controlled device maintains the blender at its best performance level all the time.
Even when there is a change in material, this device automatically detects and alters the environment to accommodate to the new material.
3. Easy Cleaning
Adhesion powder can be easily swept down to the bottom of the hopper, from which remaining materials can be completely removed. The hopper and screw can be easily removed thus, making cleaning up easier
Standard Specification
<tdrowspan=”2″ class=”tg-9j11″> Pneumatic MixingMixing DrumPneumatic MixingMixing Drum
| Model | Unit | JCW2-10 | JCW2-20 | ||||
|---|---|---|---|---|---|---|---|
| APH | JB | APH | JB | ||||
| Power Supply | Voltage | V | AC200/380V, 50Hz, 3 Phase | ||||
| Apparent Power | kVA | 4.2 | |||||
| Breaker Capacity | A | 20/15 | 30/15 | ||||
| Air supply | Pressure | Mpa | 0.4 | ||||
| Consumption | NL/min | 1 | |||||
| Maximum Measuring Capacity | Number of materials mixed | 2 Points | kg/h | ～100 | ～150 | ～300 | ～400 |
| 3 Points | kg/h | ～100 | ～350 | ||||
| 4 Points | kg/h | ～70 | ～300 | ||||
| Measurement Type | Batch type mass weighing by load cell | ||||||
| Hopper Volume | Virgin Material | L | 60 | ||||
| Regrind Material | L | 60 | |||||
| MB Material | L | 8.5(option) | |||||
| Measuring Hopper | Effective Volume | L | 11 | 18 | |||
| Measuring Range | kg | 0.015～3 | 0.015～6 | ||||
| Measuring Accuracy | Virgin Materials | % | ± 0.5% (F, S) | ||||
| Volume per batch | kg | ～3(MAX) | ～6(MAX) | ||||
| Mixing Method | |||||||
| Effective Volume | L | 8 | 18 | 14 | |||
| Outer Dimensions | W | mm | 1019 | 1019 | 1155 | 1155 | |
| D | mm | 618 | 700 | 618 | 750 | ||
| H | mm | 1714 | 2436 | 1897 | 2746 | ||
| Product Weight | kg | 140 | 200 | 160 | 220 | ||
• The above table are obtained when using pellets with a bulk density of 0.5~0.6g/cm³.
These table vary with material properties, please contact us for materials of concern.
Options
• Rotating light (without Buzzer)
• Rotating light (with Buzzer)
• Tower light (without Buzzer)
• Tower light (with Buzzer)
• Cleaning nozzle
• DIGI-PECA conveying
• Leakage breaker
