Low-Speed Granulator
SMGL is the standard for the low-speed granulators. The non-screen construction reduces the formation of powder and miss-cut thereby giving the end product a uniformed grain size.
1. Easy to clean
The cleaning part can slide and be pulled out to be cleaned easily (able to be cleaned right beside the molding machine).
2. The smallest maintenance space
It is possible to use both sides of the guide plate, crashing fixed blade & scraper.
3. The life of the blade lasts twice as long.
Able to be cleaned on the front side.
4. Easy to use
The discharge hose can be connected in any direction by 360 degrees.
Suction Box is easy to take down (with lock catch).
5. Aim for the sharpness of the cutter
Use newly designed cutters to make the granulating stable and relieve the granulating load.
Standard Specification
Model | Unit | SMGL3-G1 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 2/3 | 3/4 | 4/5 | 2/3 PLUS | 3/4 PLUS | ||||
Power supply | Voltage | AC200/380V, 50Hz, 3 Phase | |||||||
| Rated Current | A | 1.0 | 1.65 | 3.3 | 4.9 | 7.9 | |||
Motor | Output | kW | 0.4 | 0.75 | 1.5 | 2.2 | |||
| Rotating Speed | rpm | 25 | |||||||
| Large-rotating Cutter (Number) | pc. | 1 | 2 | 3 | 4 | 2 | 3 | ||
| Small-rotating Cutter (Number) | pc. | 2 | 3 | 4 | 5 | 3 | 4 | ||
Rotary Cutter Size | W | mm | 5 | 6 | |||||
| D | mm | 5 | 7 | ||||||
Cutting Chamber Dimension | W | mm | 167 | 261 | 355 | 449 | 400 | 500 | |
| D | mm | 262 | 395 | ||||||
| H | mm | 260 | 390 | ||||||
| Product Weight | kg | 156 | 195 | 237 | 265 | 500 | 530 | ||
Options
• Receiving box • Suction box • Change cutter size • Material full/Overload alarm, Material full alarm
• Suction box • Hopper three window • One window and magnet • Feed through chute • Motor 3.7 kW (Plus)

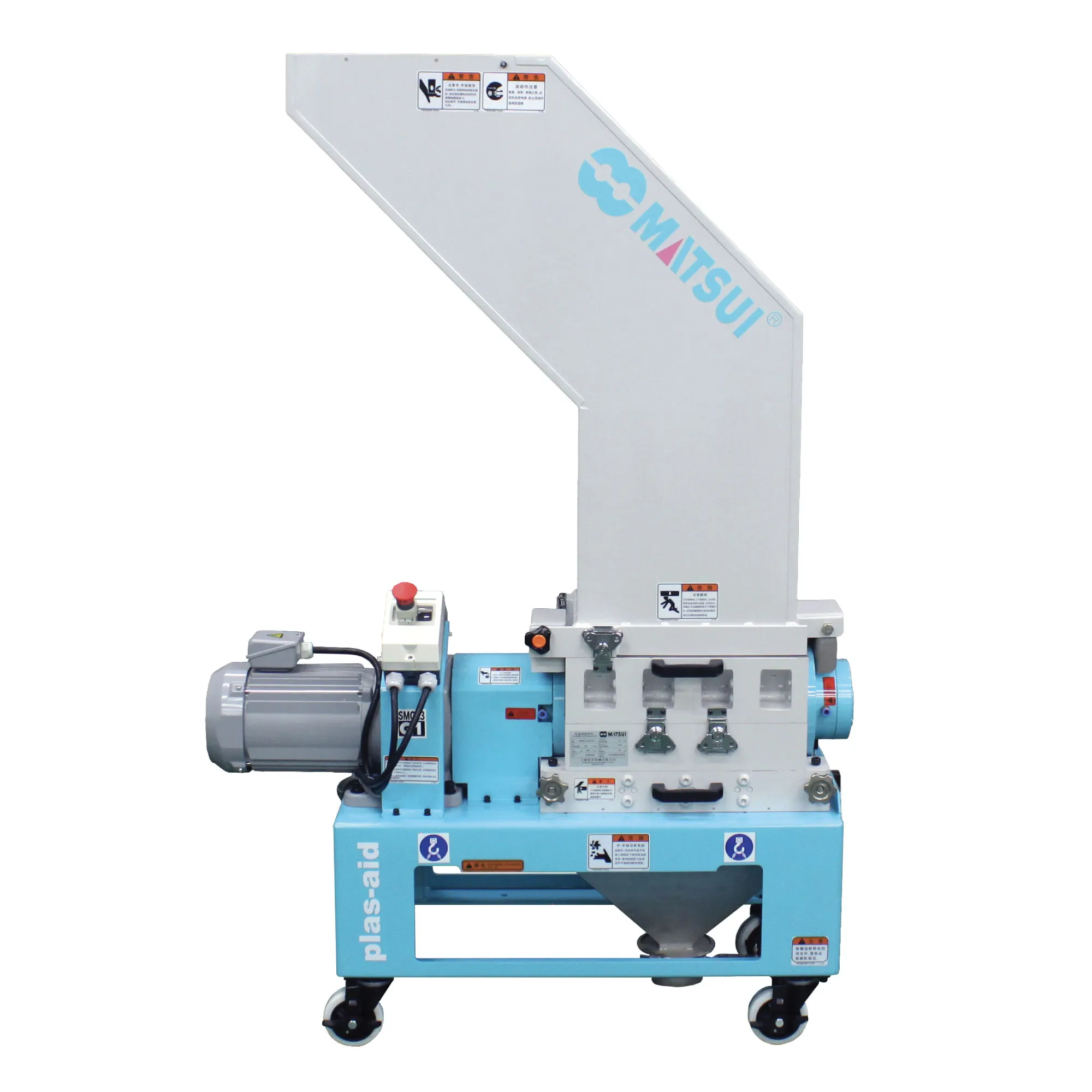

SMGL3-G1-3/4

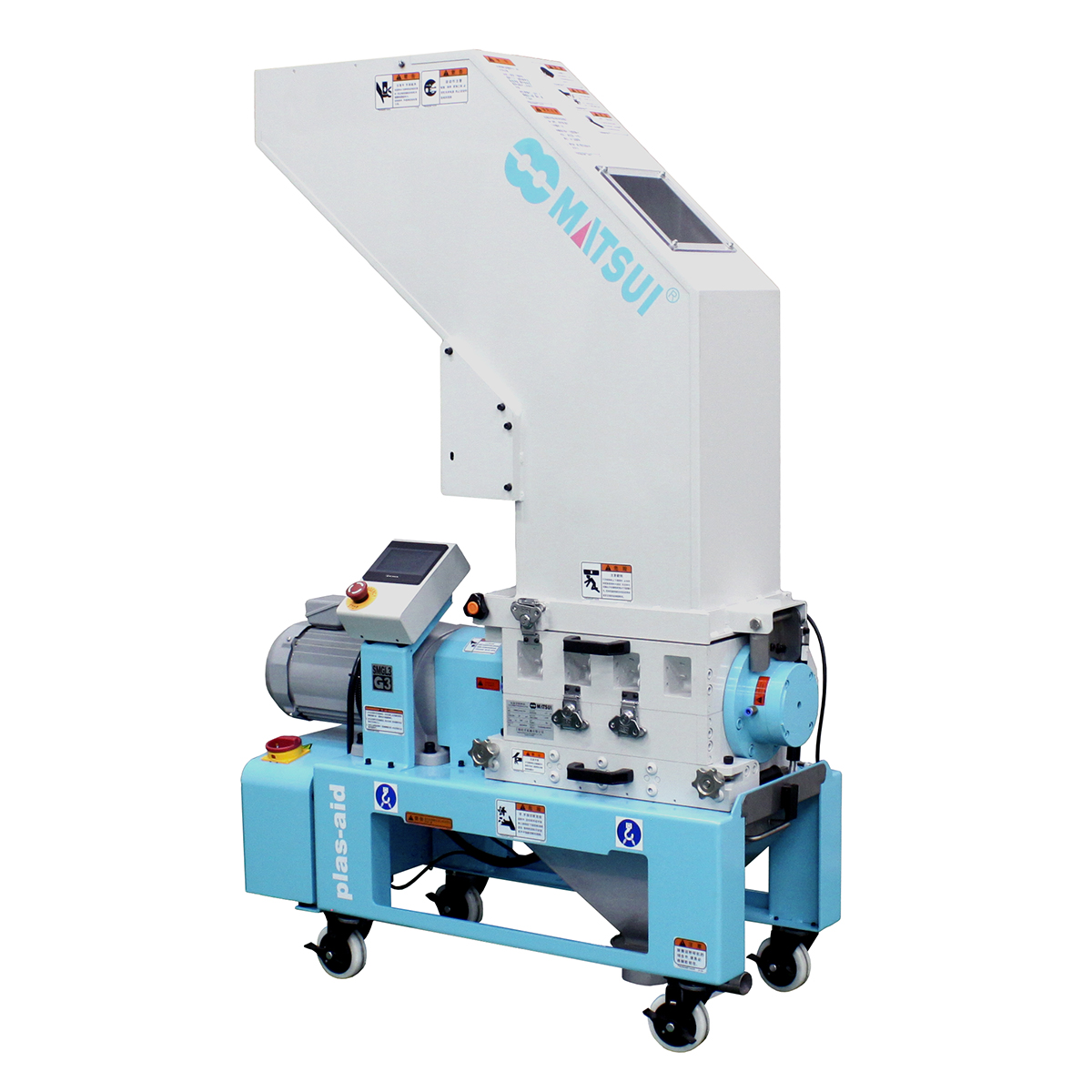

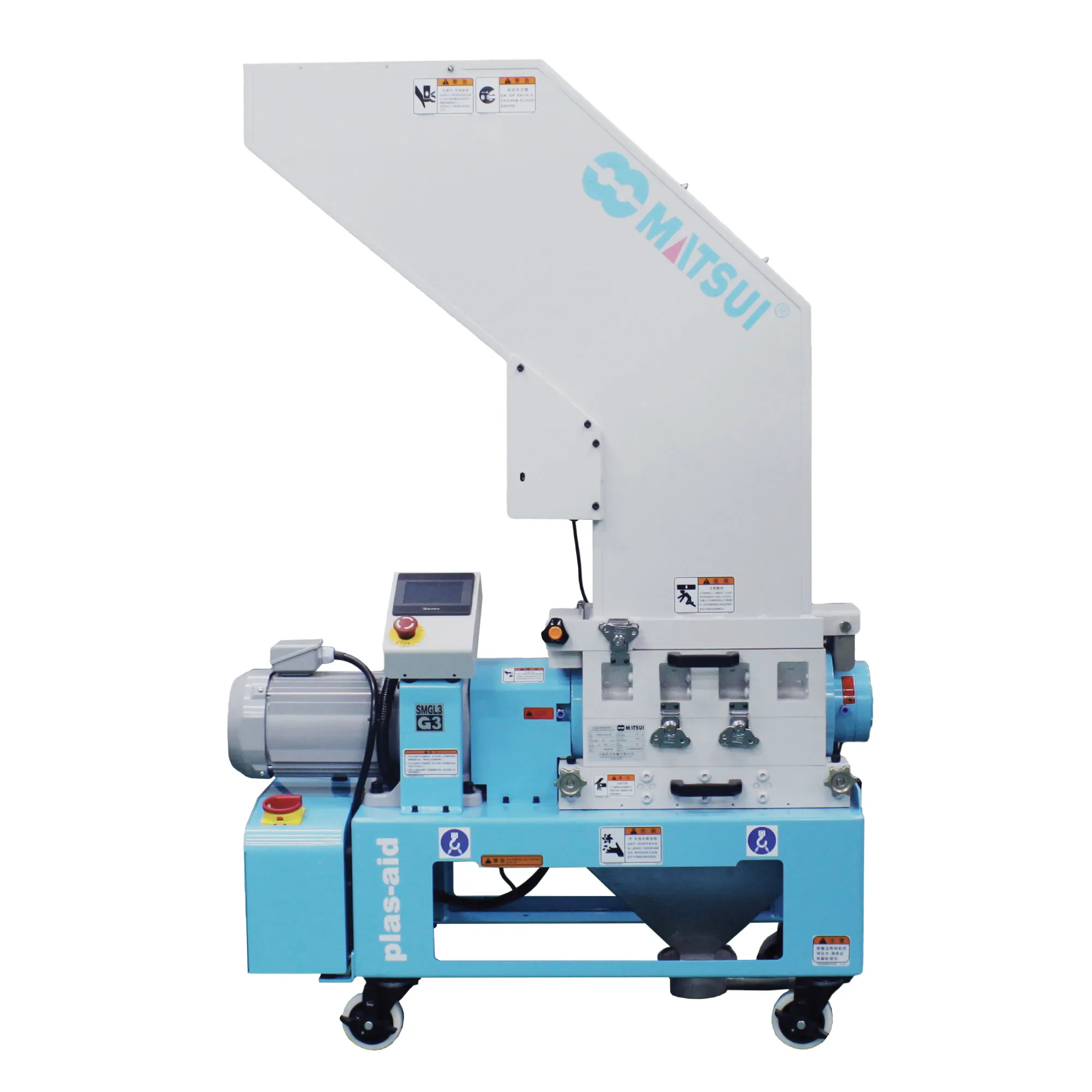

SMGL3-G3-3/4

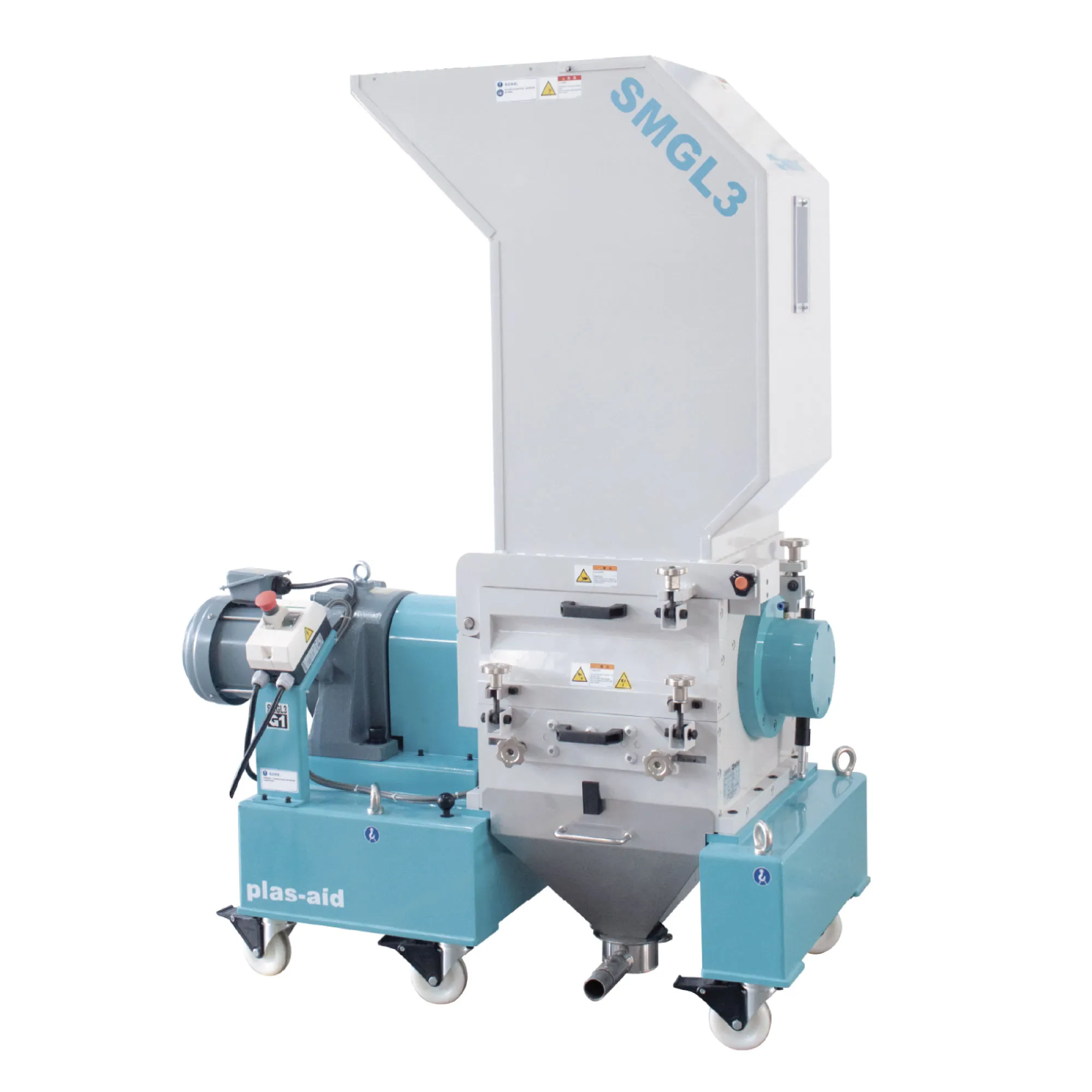

SMGL3-G1-2/3-PLUS
