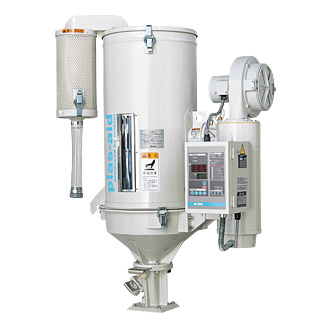

Hot Air Dryer
Hopper dryer is a ventilation typed device that dries resins with hot air. The hot air of high pressure rises as it goes in between resins and thus, is capable of uniformed drying in a short duration.
1. Reliable
Air drawn in by the blower goes through the heater of a rectified flow and is spread evenly from the discharge port. Hence, the difference between the set and actual temperature is being minimized.
Matsui’s original diffuser cone prevents short passing of materials.
2. Safe
The voltage tripping breaker (SHT type) trips upon overheating. A preventive device for external overheating comes together as an independent safety device from the temperature controller.
3. Saves Energy
The dual structure of the heater box supports both heat exchange and thermal insulation. The dual structure of the lower hopper, whose temperature rises to the highest, prevents heat radiation.
4. Easy Maintenance
While hopper body of small models can be opened via the hinge, hopper bodies of bigger model are equipped with a large maintenance window for easy cleaning.
5. Environment Friendly
The long lasting, easy to detach filter sheet keeps the molding environment clean.
Standard Specification
| Model | Unit | HD2-10-AN | HD2-15-AN | HD2-25-AN | HD2-50-AN | HD2-75-AN | HD2-100-AN | HD2-150-AN | HD2-200-AN | HD2-250-AN | HD2-300-AN | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Supply | Voltage | V | AC200/380V, 50Hz, 3 Phase | ||||||||||
| Apparent Power | Standard | kVA | 1.9 | 4.2 | 4.8 | 6.2 | 7.1 | 11.8 | 13.4 | 18.1 | 20.9 | ||
| High Temp. | kVA | 2.5 | 4.6 | 6.2 | 7.1 | 8.3 | 13.4 | 18.1 | 20.9 | 25.1 | |||
| Breaker Capacity | Standard | A | 10/10 | 20/10 | 20/10 | 30/20 | 40/30 | 40/30 | 60/40 | 75/40 | |||
| High Temp. | A | 10/10 | 20/10 | 30/20 | 30/20 | 40/30 | 60/40 | 75/40 | 100/50 | ||||
| Operating Temperature | ºC | ~130 (160) ※1 | |||||||||||
| Hopper Volume ※2 | kg | 10 | 15 | 25 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | ||
| L | 18 | 27 | 42 | 83 | 125 | 167 | 250 | 333 | 416 | 500 | |||
| Drying | Heater Capacity | Standard | kW | 1.5 | 3.6 | 4.05 | 5.4 | 6.3 | 10.8 | 12.4 | 17.1 | 19.8 | |
| High Temp. | kW | 2.1 | 4 | 5.4 | 6.3 | 7.5 | 12.4 | 17.1 | 19.8 | 24 | |||
| Blower | Output | kW | 0.032 | 0.12 | 0.13 | 0.125 | 0.3 | 0.4 | |||||
| Outer Dimension | W | mm | 668 | 861 | 857 | 969 | 1,370 | 1,707 | |||||
| D | mm | 462 | 554 | 554 | 589 | 730 | 860 | ||||||
| H | mm | 757 | 848 | 1,034 | 1,253 | 1,223 | 1,423 | 1,496 | 1,726 | 1,732 | 1,892 | ||
| Product Weight | kg | 29 | 31 | 50 | 55 | 64 | 73 | 150 | 160 | 245 | 260 | ||
※1 ( ) High Temperature Specification
<Note> Volume is that of when using ABS virgin materials with bulk density of 0.6 g/cm3.
- The maximum temperature of operating temperature range is based on the intake temperature is 20ºC and that the hopper is full of material.
- Hopper volume is based on bulk density 0.6 g/cm3.
※2 Volume is that of when using virgin materials with bulk density of 0.6 g/cm3.
Options
• External start and stop
• Earth leakage breaker
• Alarm indicator
• Low level alarm
• Weekly timer
• Heat recycle unit
• Drying timer
• Alarm output
• Magnet
• Frame (for Setting)
• High temperature. (～160℃)
• Heater disconnection
• Energy save device
