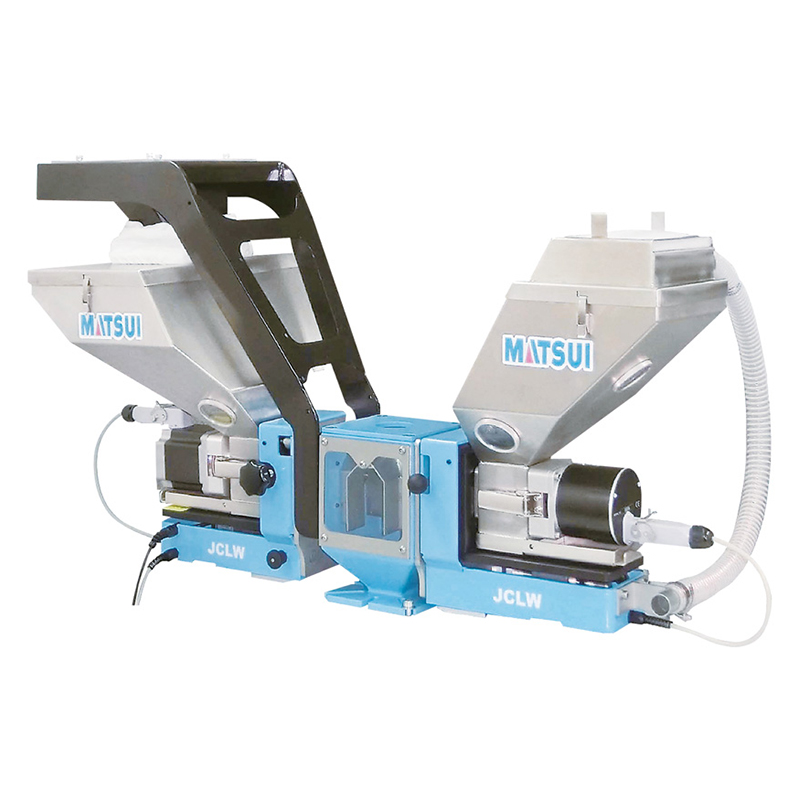

Gravimetric Loss In Weight Feeder

Save money, even if the high-mix volume production. Save your masterbatch, the most expensive material in your production.

1. No separation due to conveying

2. Accurate blending

3. Reducing Masterbatch

4. Save labor, time and resin at the color change.

5. The self-control function is built-in.

Standard Specification

Model		JCLW-2-1S	JCLW-3-2S
Power Supply	Voltage	AC95～250V 50/60Hz 1Phase
Power Consumption ①		80W	150W
Power Cable		Cable length : 2m
Operation		8 inches color touch panel
Input Signal		Potential free-, 24VDC- Extruder tacho (0-30VDC) start input
Output Signal		Error and warning, solenoid valve for automatic hopper loader
Measuring Capacity ②		0.07～180kg/h
Neck Piece Model ③		NST40 (Max loading weight – 100kg)
Communication		TCP/IP, Modbus and CANbus
Data Storage ④		Internal memory
Applicable Material ⑤	Virgin Material	Material not bridged on the hopper of this equipment
		Material not varying in grain shape and size
		Pellet : ϕ2.5<3mm, L<3mm
	MB Material	Pellet : ϕ2.5mm, L<3mm or Granules
	Regrind Material	Materials that do not bridge the safety mesh (40x40mm openings) excluding miscuts with an apparent specific gravity of 0.3 to 0.5.

① Virgin material is natural fall, and combination of one MB material metering unit. (JCLW-2-1S) Virgin material is natural fall, and combination of MB material metering unit and regrind material metering unit. (JCLW-3-2S)

② Measured with normal granular masterbatch apparent specific gravity of 0.8. It changes depending on the type of feeder and material.

③ Selection of NST90 model (Max loading weight -200kg), and the water cooling type Neck piece for high temperature materials (~120°C).

④ There is option software MCLAN2. Possible data logging of multiple devices and various settings backup.

⑤ We can not cope other than Applicable materials listing.

Options

• Auto Feeder (MB/regrind)
• High Temp Kit
• Cooling Unit
• Alarm indicator (with buzzer)
• Support frame
• Various screws
• Slide gate
