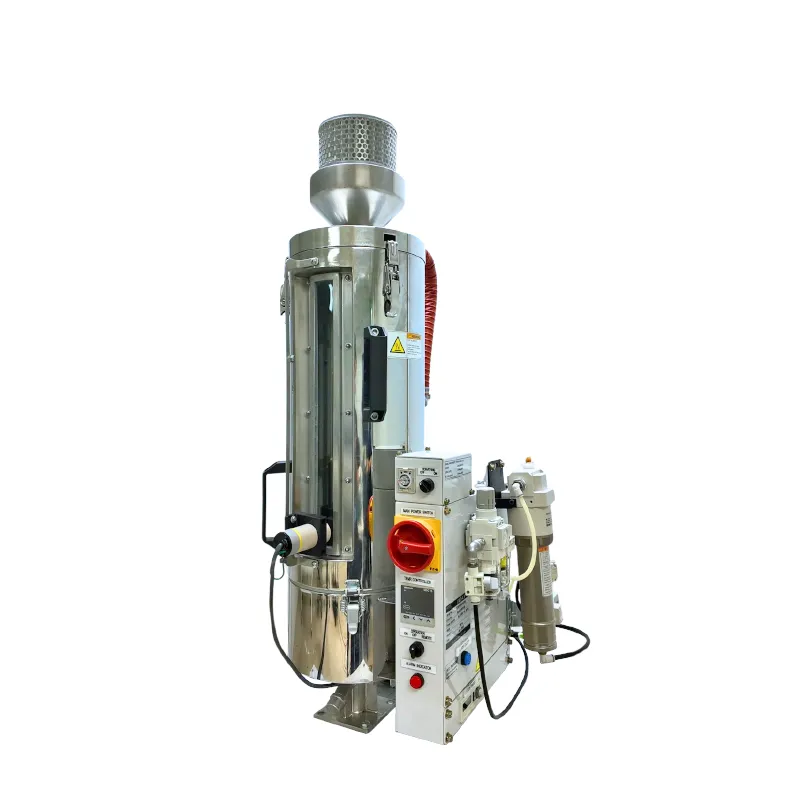

Dehumidifying Dryer
LMD compressed air dryers are ideal for low throughput applications and small molding machine applications. A -40˚C dewpoint is assured as the LMD includes a membrane air dryer to remove moisture from your compressed air. Digital flow meter is included with a no-compressed-air alarm. Venturi nozzle design for boosting dry air volume up to threefold. The hopper made from stainless steel and reinforced glass makes the LMD ideal for clean rooms and high-cost materials. An optional adjustable fill sensor and self-loading system lets you adjust the hopper capacity between 3-6 kg to match your application.
1.Drying of widely used engineering plastics resin.
Specifically designed for a small-scale drying of widely used engineering plastics.
2.Removes moisture and conditions materials.
LMD is ideal for preparing materials through pre-heating prior to the molding process.
3.It is installed on the injection molding machine, so it does not take up space.
4.Easy to clean, no time wasted.
คุณสมบัติ
| Model | Unit | LMD – 3.0~4.5 | LMD – 6.0 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Supply | Voltage | V | AC100~110V 50/60Hz , AC200~220V 50/60Hz 1phase | ||||||||||
| Operation Circuit | V | DC24V | |||||||||||
| Apparent Power | VA | 391/408 | 408/608 | ||||||||||
| Breaker Capacity | A | 4 | 4 | ||||||||||
| Air Supply | Pressure | MPa | 0.4~0.6 | ||||||||||
| Flow Rate | L/min | 10~60 | |||||||||||
| Connection Diameter | mm | Ø6 | |||||||||||
| Drying Air | Flow Rate | L/min | 50~220 | ||||||||||
| Operating Temperature | oC | ~160 | |||||||||||
| Heater | Capacity | W | 350 | 550 | |||||||||
| Hopper | Capacity | L | 7.5 | 10 | |||||||||
| Kg | 1.5~4.5 | 6 | |||||||||||
| Material | SUS | ||||||||||||
| Outer Dimension | W | mm | 397 | ||||||||||
| D | mm | 450 | |||||||||||
| H | mm | 1,001 | |||||||||||
| Outline Weight | Std.Machine | kg | 1,001 | ||||||||||
| (OP)Collector | kg | 2 | |||||||||||
| Option | |||||||||||||
| Primary Converying Unit | m | Booster Nozzle (PVC 25×5) | |||||||||||
| Dry Air Unit | Dew Point | oC | -20 or -40 | ||||||||||
| Drying temperature control | Step Temperature Control | ||||||||||||
