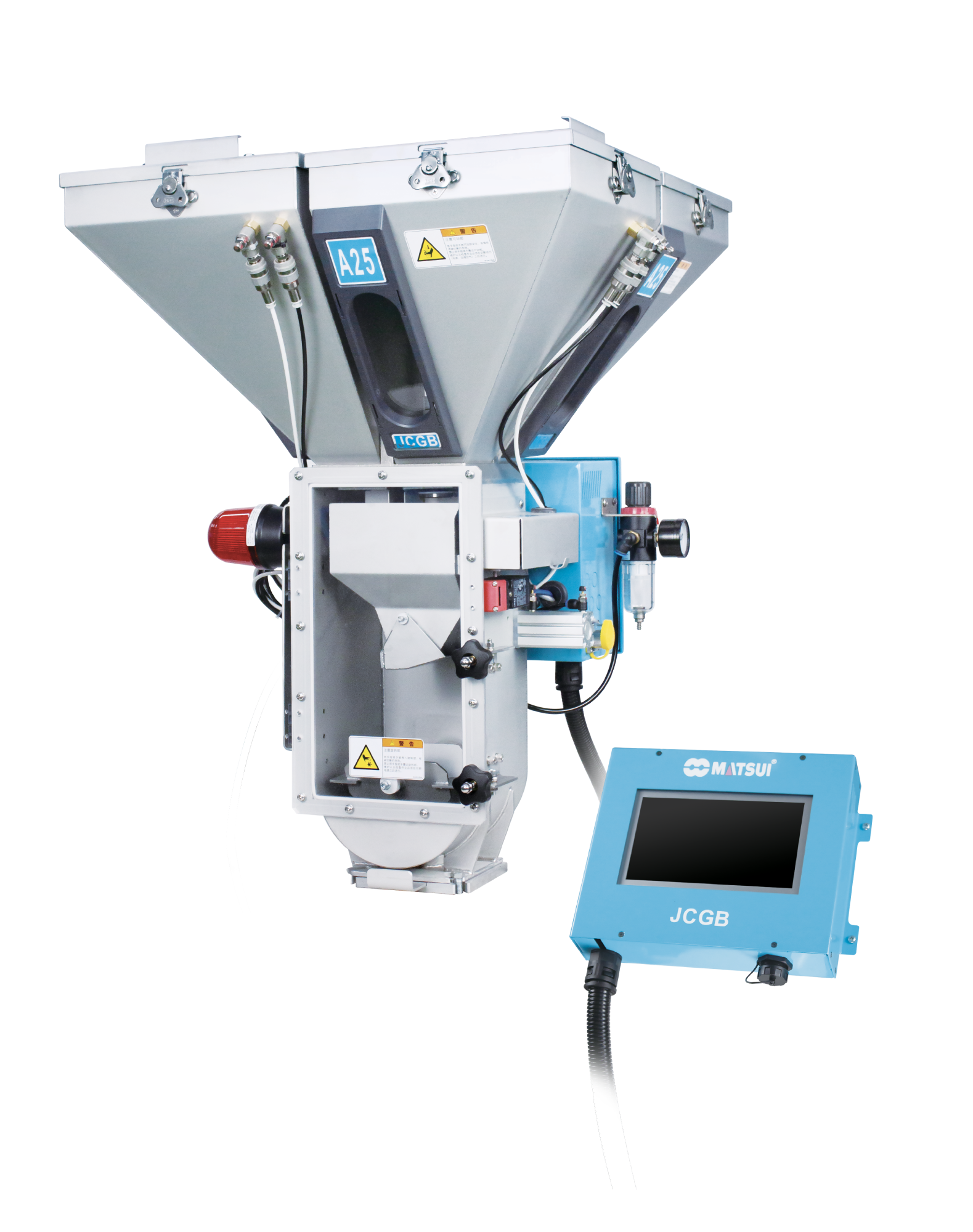

GRAVIMETRIC TYPE BLENDER
This mixer can blend up to 4 types of plastic pellets (Virgin, Masterbatch, Regrind, Additive), maximizing cost efficiency.
1. A Gravimetric Blender
2. Has maximum capacity of 60 kg/hour
3. Accurately weighs plastic pellets
4. Enhanced mixing efficiency
5. Can be mounted on an injection molding machine or a stand
6. Saves masterbatch, increasing profits
7. Compact size
8. Affordable price
คุณสมบัติ
| Model | Unit | JCGB2-06 | ||
|---|---|---|---|---|
|
Power Supply
|
Voltage | V | AC100-120V, AC200-240V, 50/60Hz, 1 Phase | |
| Apparent Power | VA | 150 | ||
|
Air Supply
|
||||
| Consumption | NL/min | 3 | ||
| Maximum Measuring Capacity | kg/h | 60 | ||
| Weighing method | Batch type mass weighing by load cell | |||
| Number of Components | Points | 2~4 | ||
| Volume per Batch | kg | 0.5 | ||
| Material hopper | For color and additives | A25 : φ 25 mm stunted valve | ||
| For natural and regrind | B40 : φ 40 mm vertical valve | |||
| Entire volume of material hopper | L | 10 | ||
| Entire volume of the measuring hopper | L | 2 | ||
| Discharging method | Flap Damper | |||
| Blending Section | Blending Method | Mixing by rotary actuator Power source: air | ||
| Effective Volume | L | |||
|
Outer Dimension
|
W | mm | 560 | |
| D | mm | 560 | ||
| H | mm | 710 | ||
| Product Weight | kg | 50 | ||
| Standard features | Alarm | Alarm indicator, Alarm buzzer | ||
| Output signals | Alarm signal (Closed during alarm, no-voltage contact) Running signal (Closed during operation, no-voltage contact)” |
|||
| Operation panel | 7-inch color touch panel | |||
| Language | Japanese, English, Chinese | |||
| External memory | USB memory | |||
| Communication | MODBUS / TCP | |||
| Remote operation | VNC connection | |||
Options
• HMI stand
• Cylinder cover
• Lower limit level meter
• Air purge
• Blow Gun
• Pressure sensor
• Floor frame
• Heat resistant specifications
• Pressure feed
• Discharge Chute
