  • Description

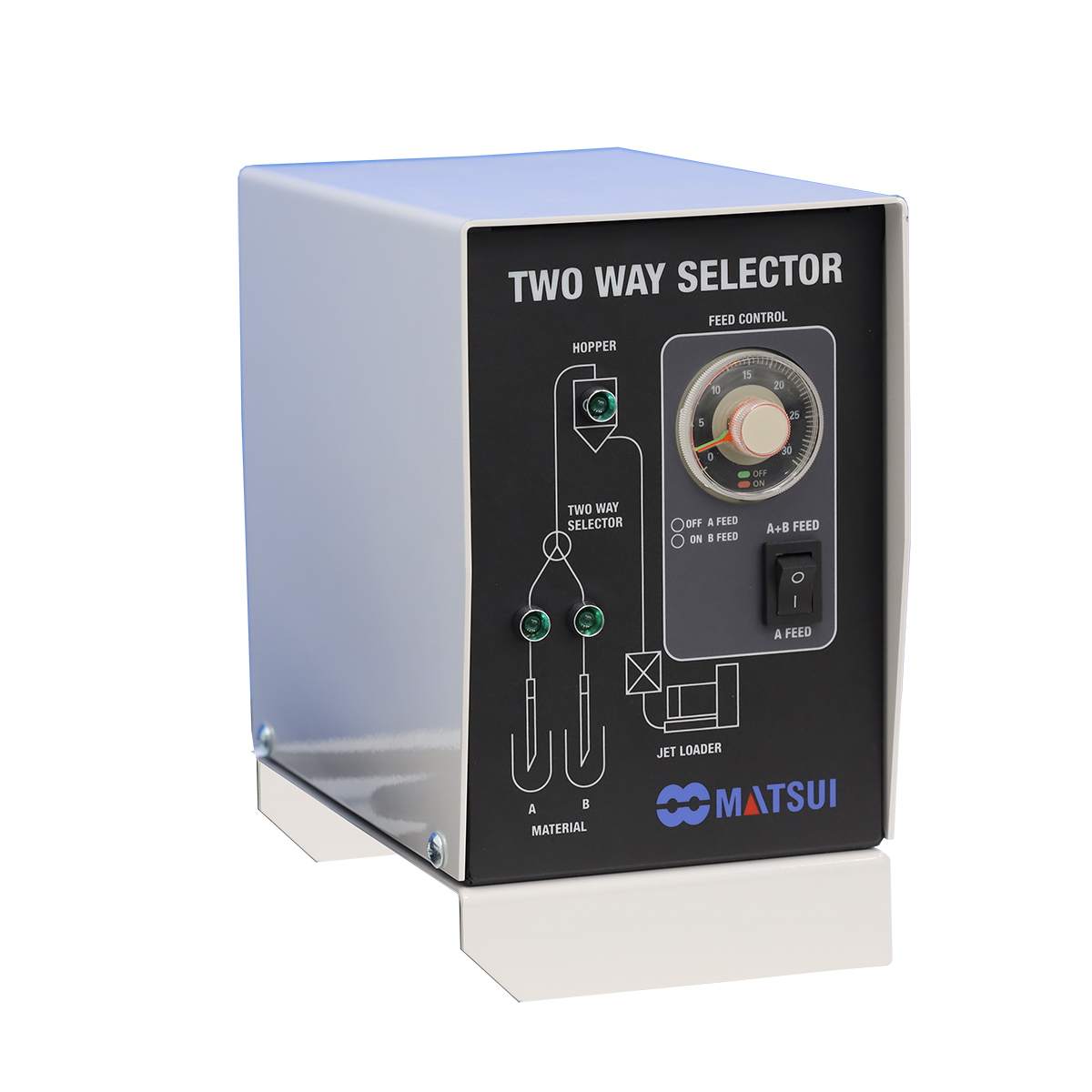

Volumetric Type Blender

Alternates between 2 types of materials based on a few second cycles. Timer for the mixing ratio can also be set.

1. Easy Installation

Virgin, regrind, and other materials are blended by ratio and conveyed by the connection with an air conveying unit. (Maximum time for select timer is 20s)

2. Safety Control

The unit is electronically controlled to ensure stable operation over prolonged periods of operation.

3. Graphical Display

The graphic panel enables the operating conditions to be checked at one glance.

4. Compact and Convenient

This compact Two Way Selector can be easily installed on a pole or any other location making it space efficient. Maintenance is also easy.

Standard Specification

Model Unit TSV-38 TSV-50
Power supply V AC200~220V, 50Hz, 1 Phase
Air Supply Pressure Mpa 0.4 ~ 0.5
Conveying Pipe mm φ38 φ50
Maximum Measuring   Capacity kg/h 300
Outer Dimensions W mm 200
D mm 180
H mm 210
Product Weight kg 6.3
