Conveyor

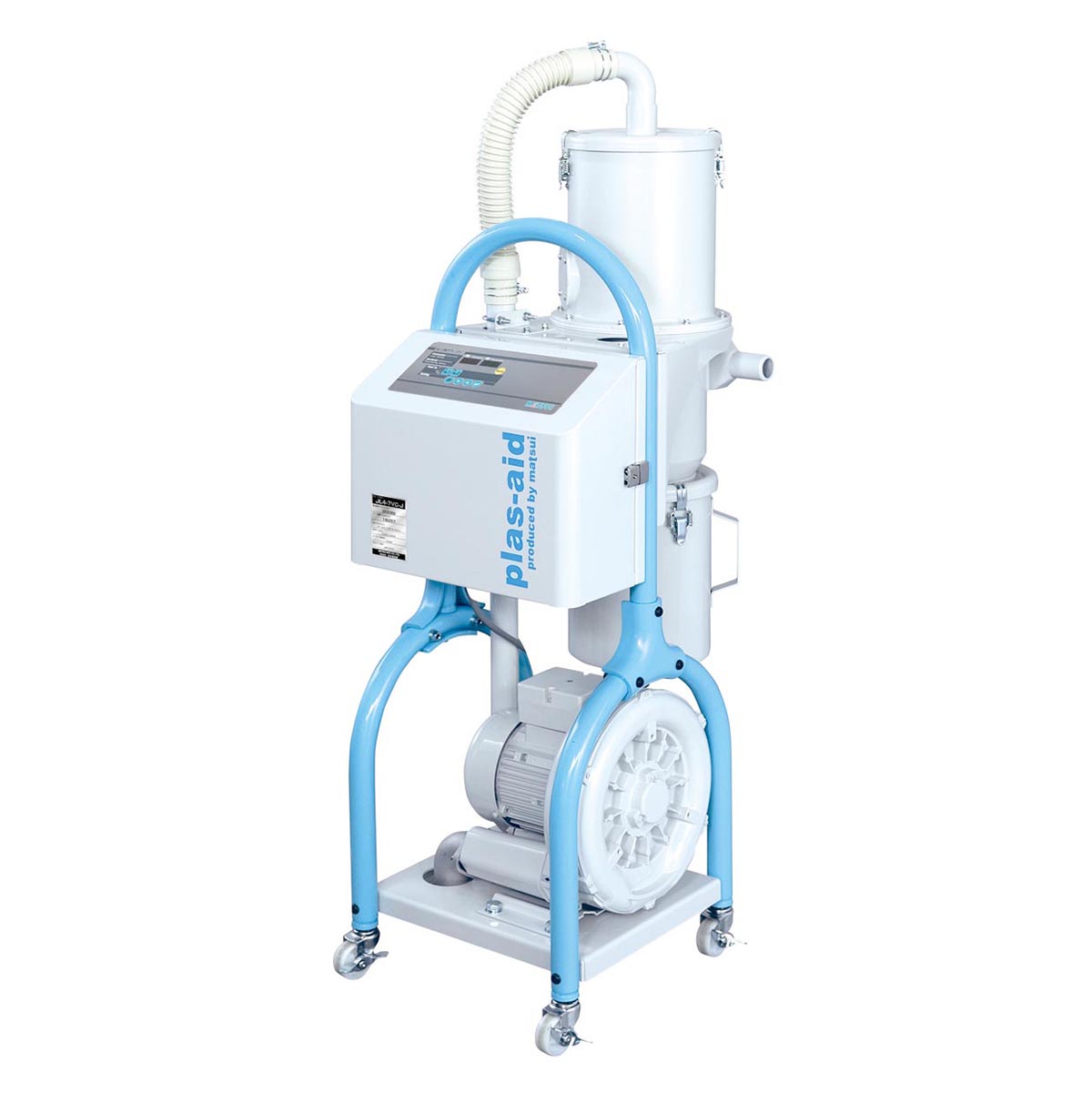

JL4
Vacuum Air Loader

  • JC
    Jet Clone" href="https://www.matsui-asia.co.th/product/jet-clone-%e0%b8%96%e0%b8%b1%e0%b8%87%e0%b8%94%e0%b8%b9%e0%b8%94%e0%b9%80%e0%b8%a1%e0%b9%87%e0%b8%94%e0%b8%9e%e0%b8%a5%e0%b8%b2%e0%b8%aa%e0%b8%95%e0%b8%b4%e0%b8%81/">

Catalog
Quotation
Spare parts
Contact

  • Description

Vacuum Air Loader

JL4 is a vacuum air loader that feeds material automatically.
Adequate collection units can be chosen for the conveyance to each receiver.
In addition, JL4 supports up to 6 different conveying directions.

1. Compact

Equipped with blower, control panel, dust collector and dust box functions, maximizes the use of limited space in factories.

2. Easy Maintenance

– The large dust box reduces the frequency of maintenance. Accumulated dust can be easily disposed by removing the cap. (V-Type)
– The cyclone typed dust separator fixed in front of the filter reduces the need for maintenance of filter and supports long hours of stable conveyance.

3. Environment Friendly

Minimized metallic and conveying noises to less than 80db.

Standard Specification

Model Unit JL4-4VC-A JL4-5VC-A JL4-6VC-A JL4-7VC-A
Power Supply Voltage V AC200/380V, 50Hz, 3Phase
Apparent Power kVA 1.84 2.15 3.12 4.37
Breaker Capacity A 15/10 20/15 40/20
Maximum Static Pressure 50Hz kPa {atm} 17.0 {1734} 18.0 {1836} 22.0 {2244} 27.0 {2754}
Maximum Volume of Dry Air 50Hz m3/min 2.4 2.4 3.5 5.1
Maximum Output 50Hz kW 0.9 1.1 2.2 4
Standard Accessories Conveying Hose Ø38x5m Ø38x10m Ø50x10m Ø50x10m
Vacuum Hose Ø38x5m Ø38x5m Ø65x5m Ø65x5m
Jet Clone JC-6 (6L) JC-9 (9L) JC-18 (18L) JC-18 (18L)
Suction Nozzle Ø38 Aluminum Ø38 Aluminum Ø50 Aluminum Ø50 Aluminum
Outer Dimension W mm 360 630 670
D mm 526 434 534
H mm 1235 1257 1257
L mm Ø38 Ø65 Ø65
Weight kg 52 69 91

• Matsui which is in a constant process of upgrading product quality reserves the ringht to change specifications shown herein of add improvements at any time withut prior notice or boligation.

Options

• Earth leakage breaker
• Alarm indicator
• Alarm output
• TSV setting
